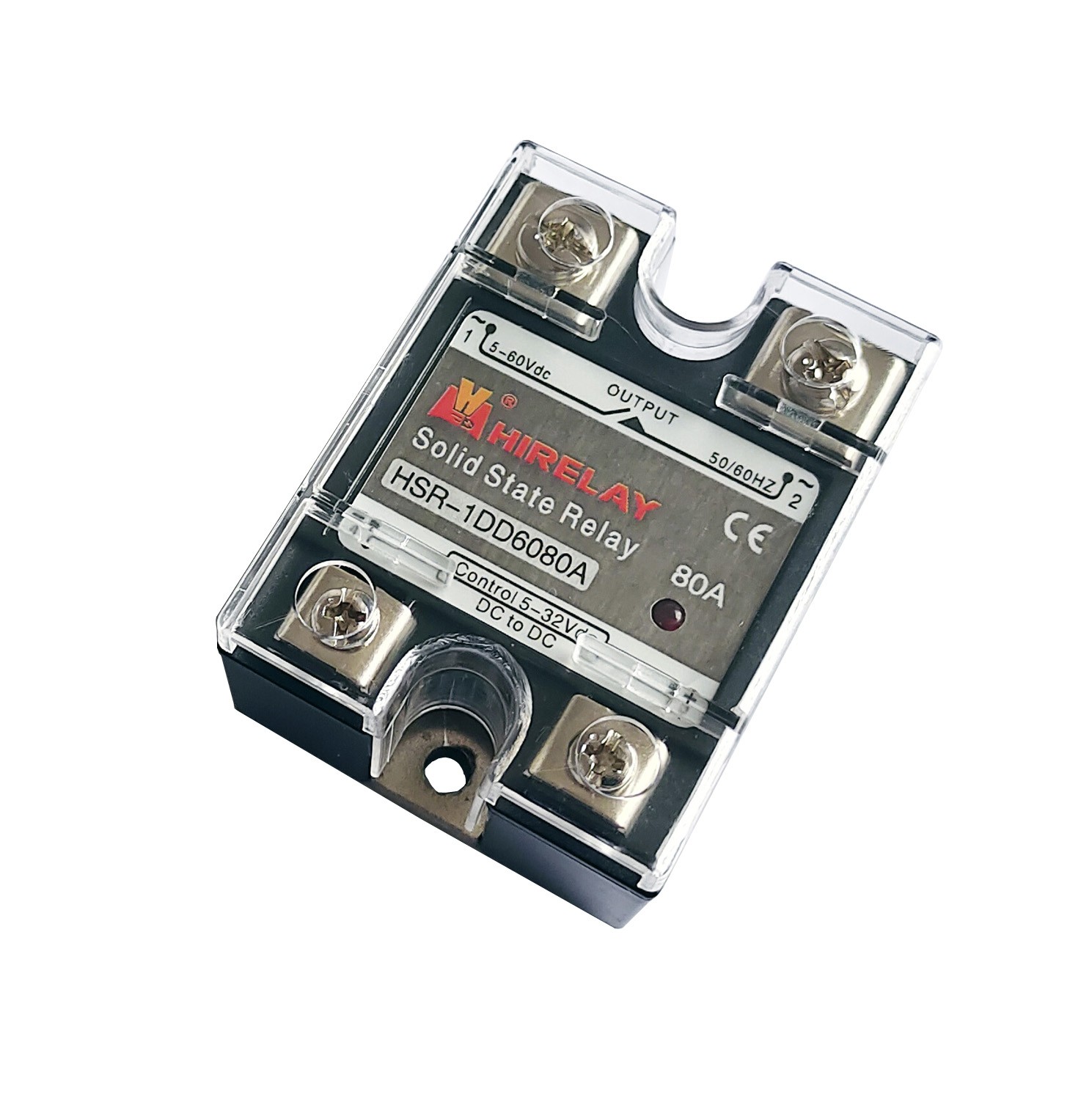

Description
| Odering Information | |||||||
| HSR | 1 | DA | 48 | 10 | R | ||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ||
| ① Part No.: | |||||||
| HSR | |||||||
| ② Phase: | |||||||
| 1: Single phase 3 : Three Phase | |||||||
| ③ Control type : | |||||||
| DA: DC -AC AA: AC-AC DD:DC-DC | |||||||
| ④ Load voltage: | |||||||
| 48: 24~480V | |||||||
| ⑤ Load current: | |||||||
| 10:10A 25:25A 40:40A 60:60A | |||||||
| 80:80A 100:100A 120:120A 150:150A | |||||||
| ⑥Switching Model: | |||||||
| Nil: Zero-cross R:Random | |||||||
| Specification | |||||||
| AC to AC | DC to AC | DC to DC | Voltage Regulator | ||||
| Model | HSR-1AA | HSR-1DA | HSR-1DD | HSR-1VD | |||
| Load voltage (V) | 24~480 | 24~480 | 6~220 | 6~220 | |||
| Load current (A) | 10, 15, 20, 25, 40, 50, 60, 80, 90, 100,120,150 | ||||||
| Control Voltage | 70～280(VAC) | 3～32(VDC) | 3～32(VDC) | ||||
| Control Current(mA) | 8~40 | 8~40 | 8~40 | ||||
| On Voltage Drop(V) | ≤1.5 | ≤1.5 | ≤1.5 | ||||
| Off Leakage Current(mA) | ≤2 | ≤2 | ≤2 | ||||
| Dielectric Strength(VAC) | ≤2500 | ||||||
| lnsulation Resistance(mΩ) | 100 | ||||||
| On-Off time (mS) | ≤10 | ≤10 | |||||
| Action State lndication | LED | ||||||
| Ambient Temperature | 30℃+75℃ | ||||||
| Load Current Resistance Above 10A Must Be Set Radiator | |||||||

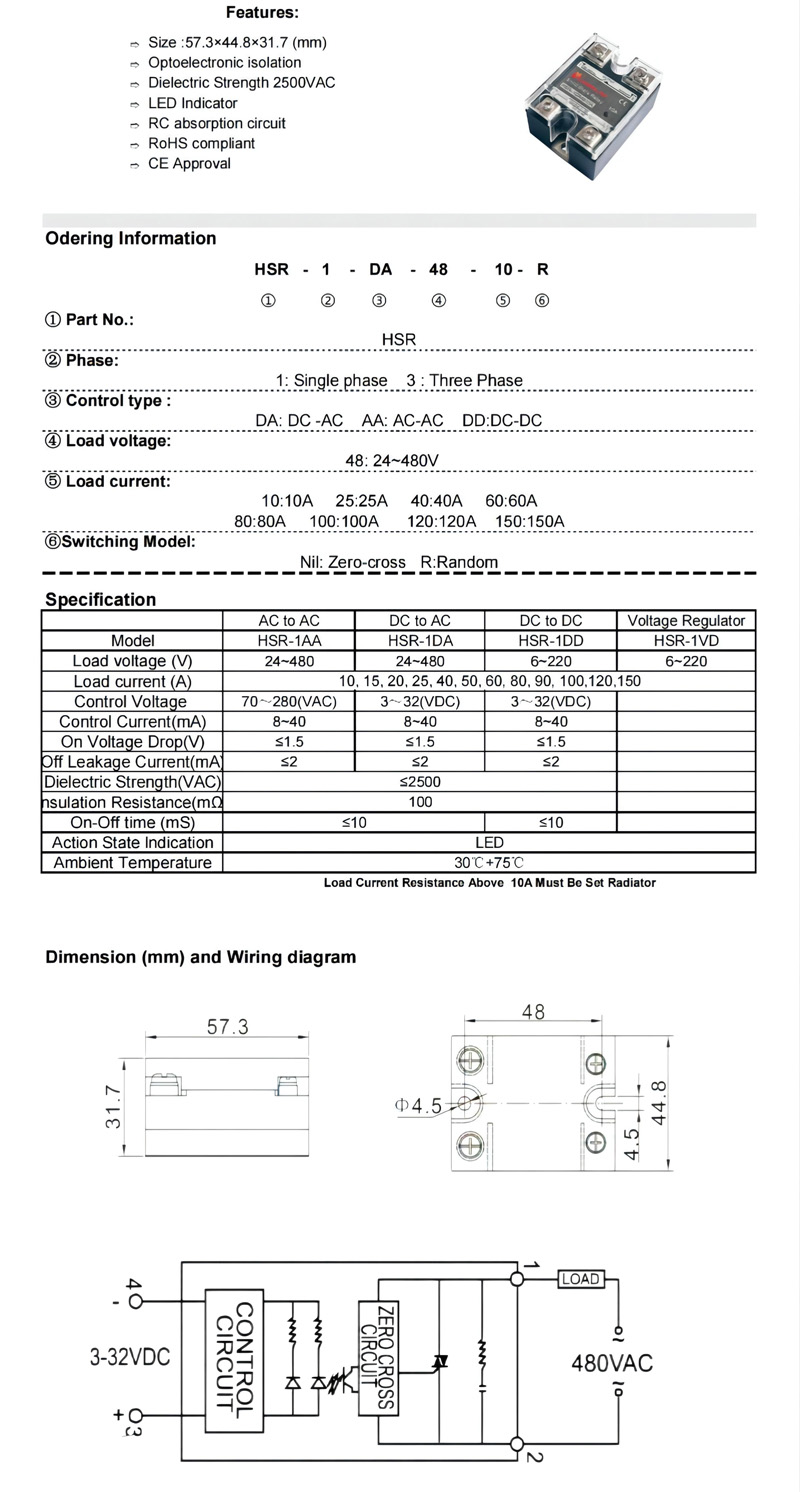

Dimension (mm) and Wiring diagram
