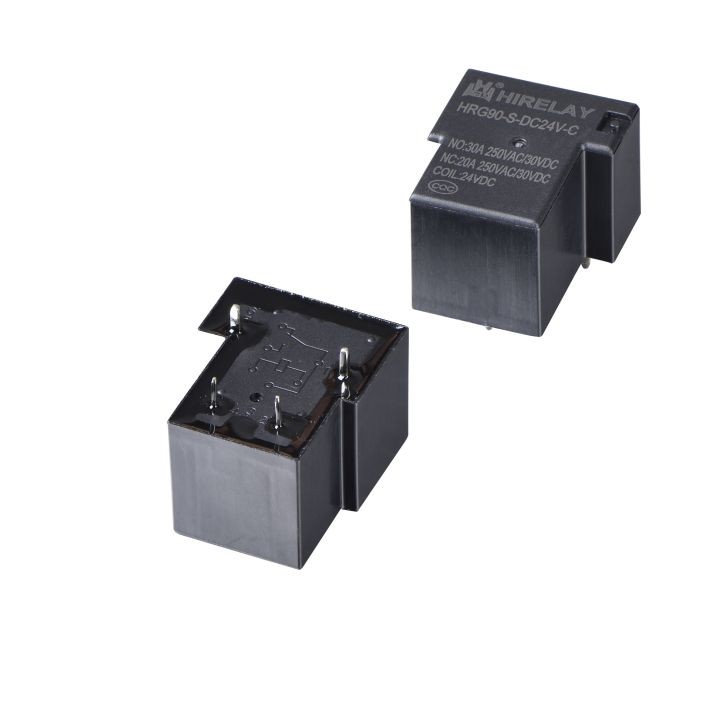

HRG90

Size ：31.8×27.4×20.0(mm)

Max.40A switching capability

Available in both open frame and sealed type

1 Form C ,1 Form A,1 Form B

Odering Information
							① Part No.
HRG90	S	DC12V	C	H		X	② Enclosure :Plastic sealed
①	②	③	④	⑤		⑥	③ Coil Voltage :
							DC 5 ,6, 9,12, 24V,48V
							④ Contact form:
							A: 1N/O C: 1C/O B : 1N/C
							⑤ Special requirment
							H : NO:40A NC :30A
							Nil: NO:30A NC: 20A
							⑥ Special requirment
Specification:
Contact					Characteristics
Contact Form 1 Form A , 1 Form B , 1 Form C					Insulation resistance		Min 1000MΩ(500VDC)
Contact Material		Ag Alloy			Dielectric Strength	Between contact 1500VAC 1min
Contact Resistance		100 mΩ(6VDC 1A)				Between coil &contact 2500VAC 1min
Contact Rating(Resistance Load)					Operate time		≤ 15ms
C: NO:30A NC : 20A 250VAC 30VDC					Release time		≤ 10ms
CH: NO:40A NC :30A 250VAC 30VDC					Shock Resistance	Endurance	100 m/s2
						Damage	1000 m/s2
Max Switching Voltage		277VAC/35VDC			Vibration Resistance		10-55 HZ 1.5mm DA
Max Switching Current		40 / 30 A			Humidity		35%-95% RH
Max Switching Power		7500VA 560W			Ambient Temperature		-40 ℃ to 85℃
Electrical Life		100,000 ops			Weigt		Approx. 27.0g
Mechanical Life		1,000,000 ops			Noted :the data are initial value
Coil Data:					at 23℃
(900mW)
Nominal Voltage VDC		Operate Voltage Max VDC		Release Voltage Min VDC			Max Voltage VDC	Coil Resistance Ω +/- 10%

5		3.50		0.50			6.50	27
6		4.20		0.60			7.80	40
9		6.30		0.90			11.70	97
12		8.40		1.20			15.60	160
24		16.80		2.40			31.20	660
48		33.60		4.80			62.40	2560

Dimension(mm)

A4S1
