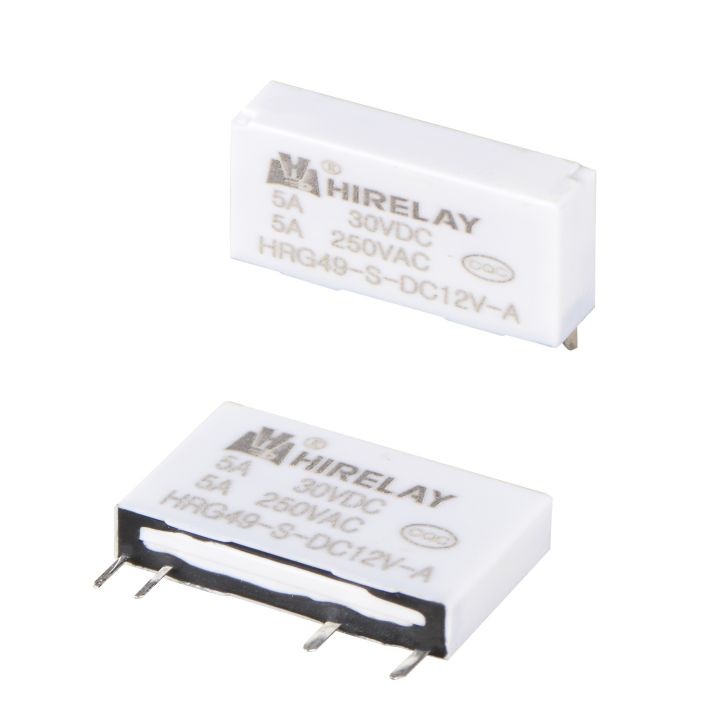

HRG49

Size ：20.0×5.0×12.5(mm)

Max.5A switching capability

High sensitive:120mW

1 Form A

Odering Information
							① Part No.
HRG49 -	S	DC12V	A	W/N			② Enclosure :Plastic sealed
①	②	③	④	⑤			③ Coil Voltage :
							DC 5 ,6 ,9,12, 24V
							④ Contact form: A: 1N/O
							⑤ PIN distance
							W :7.62 mm
							N : 5.08 mm
Specification:
Contact					Characteristics
Contact Form		1A			Insulation resistance		Min 1000MΩ(500VDC)
Contact Material		Ag Alloy			Dielectric Strength	Between contact 1000VAC 1min
Contact Resistance		100 mΩ(6VDC 1A)				Between coil &contact 3000VCA 1min
Contact Rating(Resistance Load)					Operate time		≤10 ms
5A 250VAC/30VDC					Release time		≤ 5 ms
					Shock Resistance	Endurance	100 m/s2
						Damage	1000 m/s2
Max Switching Voltage		250VAC/30VDC			Vibration Resistance		10-55 HZ 1.5mm DA
Max Switching Current		5A			Humidity		5%-85% RH
Max Switching Power		1250VA 150W			Ambient Temperature		-40 ℃ to 85℃
Electrical Life		100,000 ops			Weigt		Approx. 3.0g
Mechanical Life		5,000,000 ops			Noted :the data are initial value
Coil Data:					at 23℃
			120mW (24V 180 mΩ)
Nominal Voltage VDC		Operate Voltage Max VDC		Release Voltage Min VDC			Max Voltage VDC	Coil Resistance Ω +/- 10%

5		3.50		0.25			6.00	208
6		4.20		0.30			7.20	300
9		6.30		0.45			10.50	675
12		8.40		0.60			14.50	1200
24		16.80		1.20			28.50	3200

Dimension(mm)
