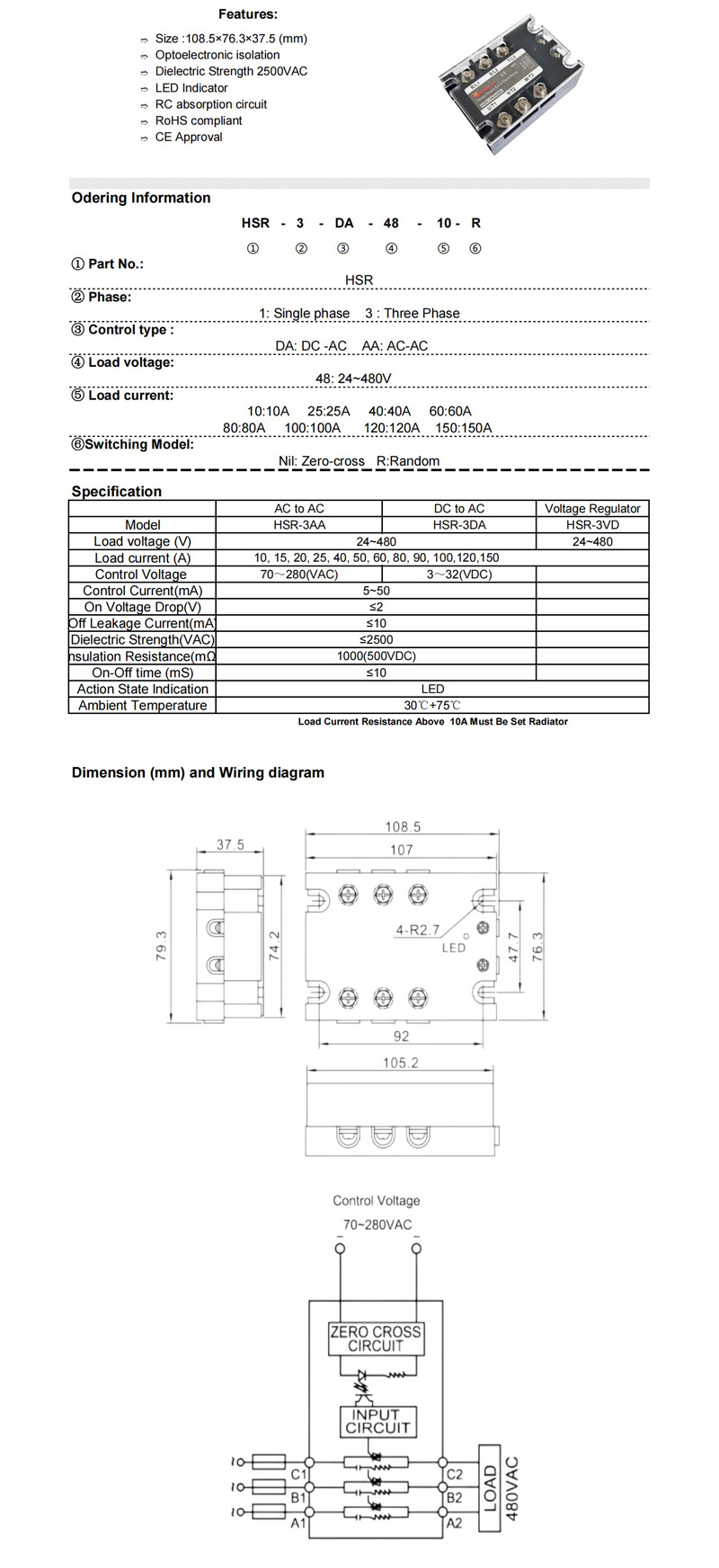

Description
Odering Information
HSR
3
DA
48
10
R
①
②
③
④
⑤
⑥
① Part No.:
HSR
② Phase:
1: Single phase 3 : Three Phase
③ Control type :
DA: DC -AC AA: AC-AC
④ Load voltage:
48: 24~480V
⑤ Load current:
10:10A 25:25A 40:40A 60:60A
80:80A 100:100A 120:120A 150:150A
⑥Switching Model:
Nil: Zero-cross R:Random
Specification
AC to AC
DC to AC
Voltage Regulator
Model
HSR-3AA
HSR-3DA
HSR-3VD
Load voltage (V)
24~480
24~480
Load current (A)
10, 15, 20, 25, 40, 50, 60, 80, 90, 100,120,150
Control Voltage
70～280(VAC)
3～32(VDC)
Control Current(mA)
5~50
On Voltage Drop(V)
≤2
Off Leakage Current(mA)
≤10
Dielectric Strength(VAC)
≤2500
lnsulation Resistance(mΩ)
1000(500VDC)
On-Off time (mS)
≤10
Action State lndication
LED
Ambient Temperature
30℃+75℃
Load Current Resistance Above 10A Must Be Set Radiator
