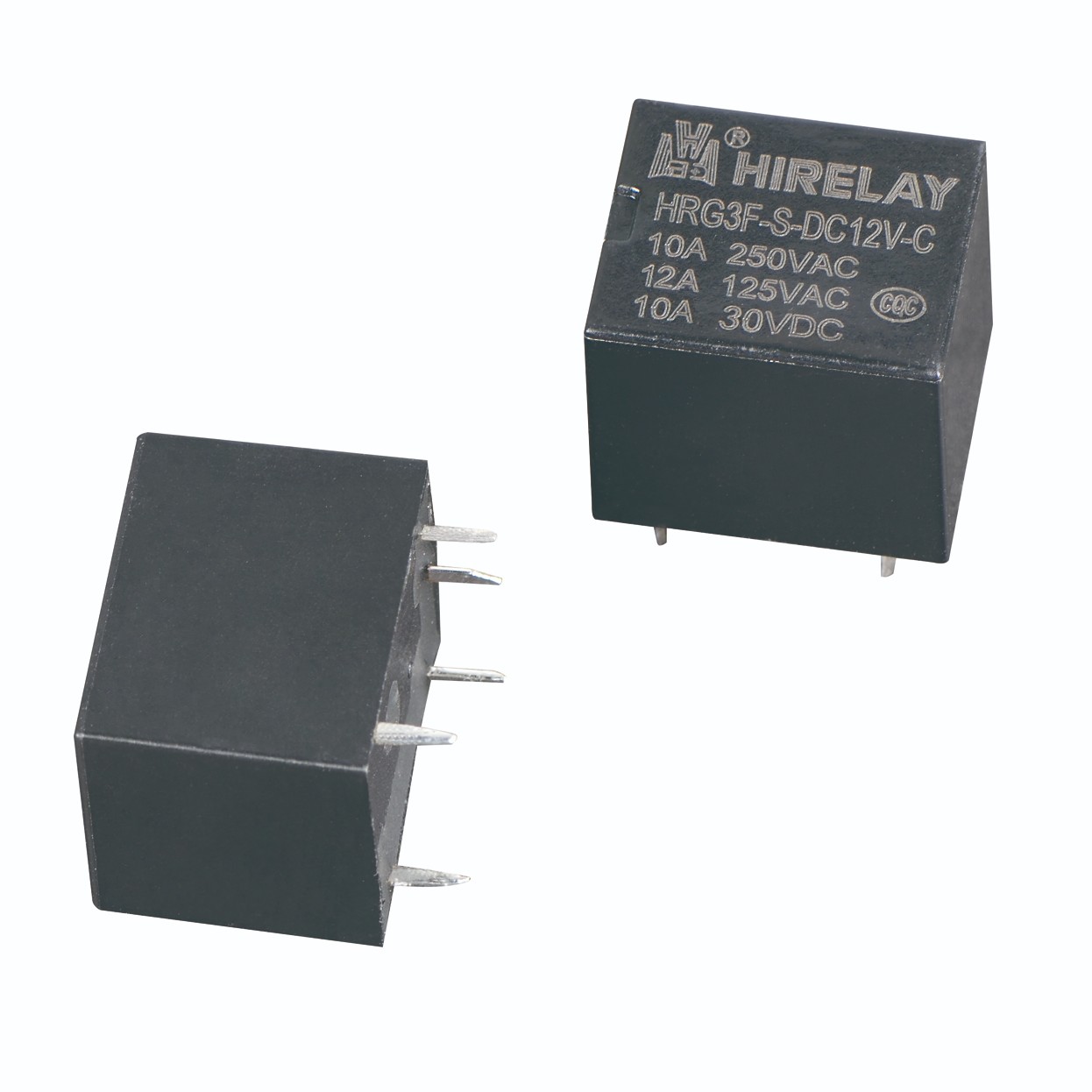

HRG3F

Size ：19.0×15.5×15.8(mm)

Max.15A switching capability

High sensitive:360mW

1 Form C ,1 Form A,1 Form B

Odering Information
							① Part No.
HRG3F -	S	DC12V	C	X			② Enclosure :Plastic sealed
①	②	③	④	⑤			③ Coil Voltage :
							DC3, 5 ,6 ,9,12, 24V
							④ Contact form:
							C : 1C/O A: 1N/O B :1N/C
							⑤ Special requirment
Specification:
Contact					Characteristics
Contact Form		1A, 1B, 1C			Insulation resistance		Min 1000MΩ(500VDC)
Contact Material		Ag SnO2			Dielectric Strength	Between contact 750VAC 1min
Contact Resistance		100 mΩ(6VDC 0.1A)				Between coil &contact 1500VAC 1min
Contact Rating(Resistance Load)					Operate time		≤10 ms
	A: 12A 125VAC/ 10A 250VAC				Release time		≤ 5 ms
	C: NO:10A 250VAC/30VDC				Shock Resistance	Endurance	100 m/s2
	NC: 7A 250VAC/30VDC					Damage	1000 m/s2
Max Switching Voltage		250VAC/30VDC			Vibration Resistance		10-55 HZ 1.5mm DA
Max Switching Current		12A			Humidity		535%-95% RH
Max Switching Power		2500VA 280W			Ambient Temperature		-40 ℃ to 85℃
Electrical Life		100,000 ops			Weigt		Approx. 10.0g
Mechanical Life		5,000,000 ops			Noted :the data are initial value
Coil Data:					at 23℃
			High Sebsitivity (360mW)
Nominal Voltage VDC		Operate Voltage Max VDC		Release Voltage Min VDC			Max Voltage VDC	Coil Resistance Ω +/- 10%

3		2.10		0.30			6.00	25
5		3.50		0.50			10.00	70
6		4.20		0.60			12.00	100
9		6.30		0.90			18.00	225
12		8.40		1.20			24.00	400
24		16.80		2.40			48.00	1600
			Standard (450mW)
Nominal Voltage VDC		Operate Voltage Max VDC		Release Voltage Min VDC			Max Voltage VDC	Coil Resistance Ω +/- 10%

3		2.10		0.30			6.00	20
5		3.50		0.50			10.00	55
6		4.20		0.60			12.00	80
9		6.30		0.90			18.00	180
12		8.40		1.20			24.00	320
24		16.80		2.40			48.00	1280
