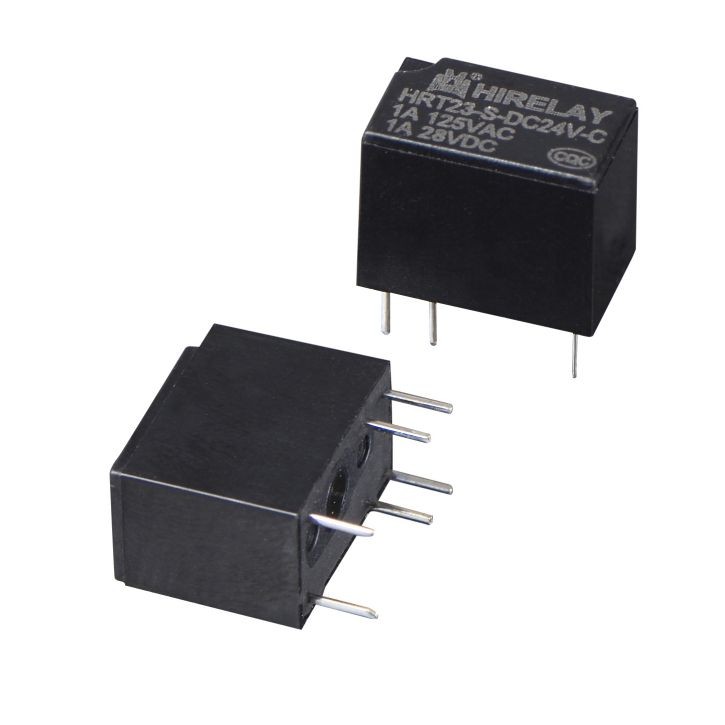

Description
| Odering Information | ||||||||
| ① Part No. | ||||||||
| HRT23 | S | DC12V | C | ② Enclosure :Plastic sealed | ||||
| ① | ② | ③ | ④ | ③ Coil Voltage : | ||||
| DC 3,5,6,9,12,24V | ||||||||
| ④ Contact form: | ||||||||
| C : 1 C/O | ||||||||
| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form | 1 Form C | Insulation resistance | Min 100MΩ(500VDC) | |||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 500VAC 1min | |||||
| Contact Resistance | 50 mΩ(6VDC 0.1A) | Between coil &contact 1100VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤5 ms | ||||||
| 1A 125VAC/24VDC | Release time | ≤5 ms | ||||||
| 1A 125VAC/24VDC | Shock Resistance | Endurance | 100 m/s2 | |||||
| Max Switching Voltage | 125VAC/30VDC | Damage | 1000 m/s2 | |||||
| Max Switching Current | 2A | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Power | 250VA 48W | Humidity | 35%-95% RH | |||||
| Electrical Life | 100,000 ops | Ambient Temperature | -40 ℃ to 70℃ | |||||
| Mechanical Life | 5,000,000 ops | Weigt | Approx. 2.2g | |||||
| Noted :the data are initial value | ||||||||
| Coil Data: | at 23℃ | |||||||
| Standard type (200mW) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 3 | 2.40 | 0.30 | 6.00 | 45 | ||||
| 5 | 4.50 | 0.50 | 10.00 | 125 | ||||
| 6 | 4.80 | 0.60 | 12.00 | 180 | ||||
| 9 | 7.00 | 0.90 | 18.00 | 405 | ||||
| 12 | 9.60 | 1.20 | 24.00 | 720 | ||||
| 24 | 19.20 | 2.40 | 48.00 | 2880 | ||||
| Sensitive type(150mW) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 3 | 2.40 | 0.30 | 6.00 | 60 | ||||
| 5 | 4.00 | 0.50 | 10.00 | 167 | ||||
| 6 | 4.80 | 0.60 | 12.00 | 240 | ||||
| 9 | 7.00 | 0.90 | 18.00 | 540 | ||||
| 12 | 9.60 | 1.20 | 24.00 | 960 | ||||
| 24 | 19.20 | 2.40 | 48.00 | 3840 | ||||
| Dimension(mm) |
